Product Description

IP65 Explosion proof Waterproof inverter 30kw DC to

AC power supply 3 phase

Product Introduction

SANDI Explosion-proof inverter is the one of the most advanced technology DC to AC conversion products in the world, it’s suitable use for areas without electricity, providing a complete power solution for strict demand applications. With SVPWM technology it has high conversion efficiency, high instantaneous power and low losses power output pure sine wave, applying to capacitive, inductive and nonlinear mixed-load, with superior load capacity, perfect protection function: overload, short circuit, low/over battery voltage, improper operation etc, which won’t cause mechanical failures. This Inverter is very suitable for mining area, coal mine, gas station, solar power systems and electric power distribution system. The inverter can supply AC power to all kinds of electric equipment, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other industrial power supply.

Explosion-proof Off Grid Inverter Application Scope:
1.Zone 1 & 2 Hazardous locations, such as: underground coal mines, wineries, chemical plants, etc.
2.Environment with IIA、IIB、IIC types of explosive gas, such as: Flour mills, Aluminum powder plant, Metal mine factory, Graphite factory, etc.
3.Indoor (IP54) or outdoor(IP65)

4. Low noise/ Silent working mode

5. Explosion proof/ Spark-proof/ Waterproof/ Anti-dust/ Shock-proof.



Explosion-proof Off Grid Inverter Features:

1.Durable4.0 thick steel plate seamless welding, surface spray, beautiful appearance.
2. Explosion proof rating: Explosion-proof standard is EXdIIBT4.
3. More reliable: Built-in low frequency isolation transformer, strong ability of anti-interference.
4.Widespread application: DC to AC, Single phase to Three phase, High voltage to Low voltage or Low voltage to High voltage.
5.Pure sine wave output, quick instant response speed
6.Excellent performance of taking load, it can take a variety of loads, such as: halide lamps, motors, welding machines, precision machine tools, fluorescent lamps, energy-saving lamps, etc.
7. Powerful protection functions: With over-current, over load, under voltage, over voltage, short circuit, over heating and other protection.
8. High protection class: With good performance of anti-dust, waterproof, shockproof.
9. 100% full power output: Can be 7* 24 hours continuously working

10. Accept customized: Can be customized according to customers’ requirements.
11. Adopted the sixth generation IPM intelligent power module from Mitsubishi, high efficiency and stable performance, intelligentized, modular, simple structure design, very easy and low cost for future's maintenance.

12. Advanced functions:

1) Setting flexible: The DC input voltage range, output voltage, output frequency all can be set.

2) Two kinds of work mode: Can add AC bypass input(Optional), Battery priority, AC bypass as back up or AC bypass priority, battery as back up.

3) Two kinds of start mode: Variable frequency start and Step down voltage start. with stronger capacity to drive inductive load.

4) RS485 remote monitoring (Optional)

5) Big LCD color screen display, modular structure very easy for future's maintenance

6) High efficiency > 94% and low loss, design service life > 15 years.

Technical specification

Model		SDEX 5-100KW
Isolation mode		Low Frequency Transformer
Enclosure Standard		EXdIIBT4
DC Input	Rated voltage (Vdc)	96V/120V/192V/240V/360V/480V/600V/750V (Optional )
AC Output	Output waveform	Pure Sine Wave
	Rated Output Voltage(Vac)	120V/220V/380V/415V/440V/480VAC±5% (Optional)
	Power range (KW)	5kw to 100kw (Optional)
	Frequency	50Hz or 60Hz Can be set
	Power Factor（PF）	0.99
	Overload Ability	150%, 5 seconds
	Efficiency	>94%
	Waveform distortion rate (THD)	<3%（Linear load）
	0-100%）Dynamic Response (0 to 100% load)	5%，≤50ms
	Display	LCD+LED
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1 Minute
Protection Function	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Natural cooling
	Short-circuit protection	No automatic recovery, need to restart the machine
Working environment	Noise ( 1 meter)	≤50dB
	Degree of protection	IP54
	Working Altitude（m）	≤3000
	Working temperature	-25~+55℃
	Relative humidity	0~90%，non-condensing









































































Our company can adjust parameter configuration according to user’s requirement.

Price Terms︰ FOB Shanghai, Ningbo

Payment Terms︰ TT

Lead Time︰ 20 days

Standards Certificate︰ CE, ISO9001, UL

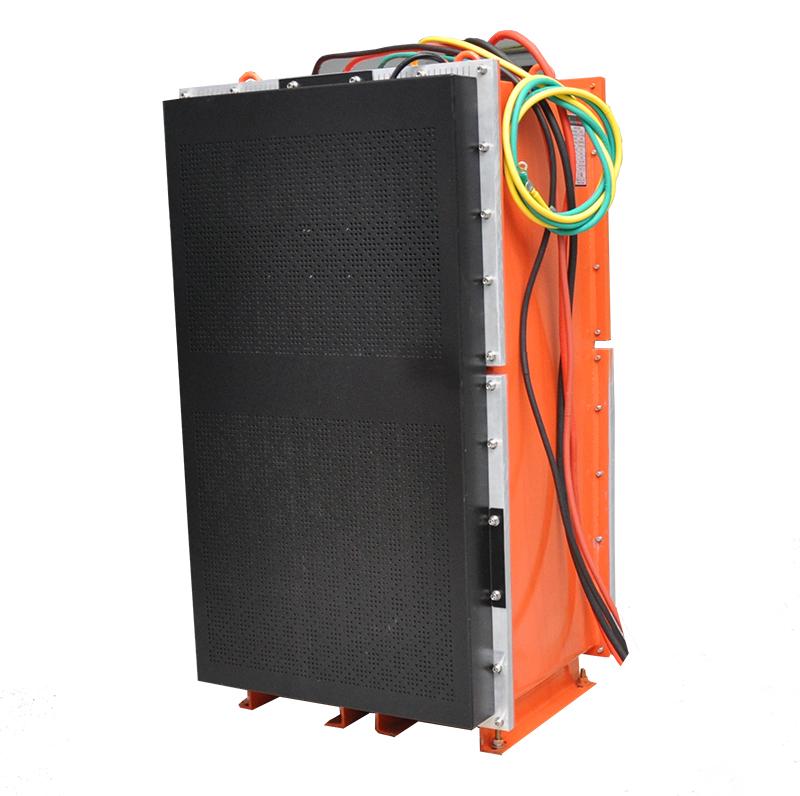

Product Image
